Purpose of Replacing Exhaust Headers
An exhaust header paired with a high-flow catalytic converter is an extremely important component among various modification parts. It plays a significant role in unlocking a vehicle’s potential power. Compared to the low-flow, high-cell-density catalytic converters equipped in stock vehicles to meet stringent environmental emission standards, aftermarket high-flow catalytic converters can eliminate excessive exhaust backpressure. This backpressure is caused by a significant increase in turbo pressure after ECU tuning, which can lead to knocking and severe detonation, ultimately causing engine damage. On the other hand, compared to the stock high-density catalytic converters, aftermarket high-flow catalytic converters allow the hot exhaust gases from engine combustion to be expelled more smoothly, reducing “heat accumulation.” This helps minimize engine heat soak, ensuring more sustained power performance!
Reunderstanding the “Familiar” Aftermarket Exhaust Header
[Image]
An aftermarket exhaust header mainly consists of three parts: metal connecting pipes, a flex section, and a metal high-flow catalytic converter. The metal connecting pipes and flex section are the simplest parts of an aftermarket exhaust header, primarily because the header is the shortest section of the exhaust system. The pipe bends are also constrained by the original design due to engine layout, leaving limited room for aftermarket exhaust manufacturers to innovate. The differences between products from various manufacturers are mainly in the material of the pipes, welding craftsmanship, and pipe diameter. The metal high-flow catalytic converter, however, is the part with the highest technical barriers and technological content in the entire exhaust header, making it the most costly component. For example, the cost of a metal high-flow catalytic converter that meets Euro 5 emission standards can account for 80% or even more of the total cost of an exhaust header (depending on the engine displacement—larger displacements require larger catalytic converters, which increases the cost). In terms of technological content, high-flow metal catalytic converters are undoubtedly high-tech products in the exhaust system. Today, many people think of catalytic converters as automotive parts, but they are actually chemical products. Due to the vast cross-industry nature, understanding of catalytic converters is limited to their function, both for ordinary consumers and exhaust manufacturers. Currently, very few aftermarket exhaust brands worldwide are capable of both manufacturing exhaust systems and producing catalytic converters! All aftermarket exhaust manufacturers without exception purchase catalytic converters from specialized manufacturers and then assemble them. So, in essence, in the field of exhaust headers, the core competitiveness of various manufacturers lies in the quality and efficiency of the catalytic converters.

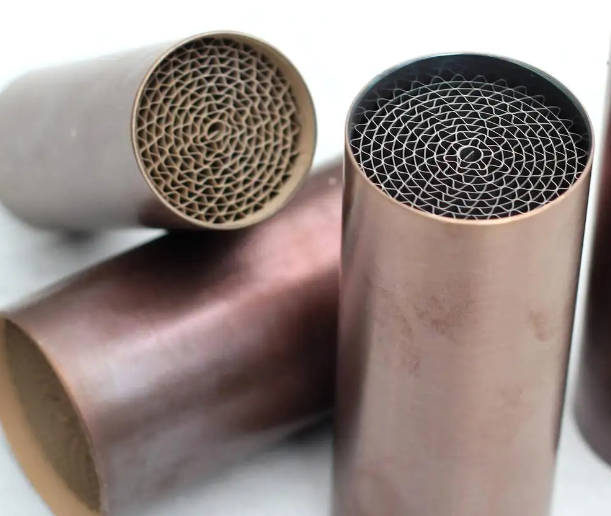

Structure of a Catalytic Converter (This section only describes metal substrates; ceramic substrates are not discussed here):
[Image]
A complete catalytic converter consists of two parts: the catalytic converter substrate and the catalyst (the “200-cell” or “300-cell” often mentioned refers to the density of the substrate).
Catalytic Converter Substrate: Its main function is to carry the catalyst and increase the surface area exposed to the exhaust gases.
Catalyst (Coating) Main Components: Rare earth powders (alumina, zirconia, rare earth oxides), precious metals (palladium, rhodium, platinum), and promoters (other metal oxides). The high cost of catalytic converters is mainly due to the use of precious metals. The chart below shows the recent price trend of palladium as an example:
[Image]
The settlement currency in the chart is USD, and the unit is: USD/troy ounce.
1 troy ounce = 1.0971428 avoirdupois ounces = 31.1034768 grams
Main Functions of Palladium, Rhodium, and Platinum:
[Image]
The application of these three precious metals in catalytic converters increases as emission regulations become stricter, and current technology cannot replace them: [Image]
R&D and Manufacturing Process of Catalytic Converters:
Manufacturing catalytic converters is a high-tech, high-investment industry. A qualified catalytic converter generally goes through the following stages from concept to finished product: First, chemical giants develop baseline formulations according to emission regulations. The baseline formulation is like making noodles—whether it’s “noodles with gravy” or “noodles with fried sauce,” you always need “flour.” Here, the “flour” refers to the baseline formulation of the catalytic converter. Currently, companies capable of independently developing baseline formulations globally include: Germany’s BASF (formerly Engelhard USA)/UK’s Johnson Matthey/Belgium’s Umicore/Japan’s Cataler (majority-owned by Toyota, with over 80% shares). The baseline formulations for catalytic converters that meet the highest emission regulations are top commercial secrets for these companies. To obtain such formulations, you must have a close cooperative relationship with them. After the baseline formulation is successfully developed, matching “coating development” is required to achieve mass production standards, professionally termed “coating.” The purpose of coating development is to apply the chemical elements in the baseline formulation to the catalytic converter substrate in specific proportions (different substrate materials and densities result in varying adhesion of the coating. Adhesion is a critical parameter for a catalytic converter, as the exhaust pipe operates in a harsh environment. Weak adhesion can cause the coating to wear off too quickly under high-speed hot gas, leading to catalytic converter failure. Therefore, to meet actual production and usage needs, corresponding coating processes must be developed for each new formulation and substrate). The difficulty of coating varies depending on the substrate material or density (from easiest to most difficult: ceramic substrate < metal substrate < 600-cell substrate < 400-cell substrate < 300-cell substrate < 200-cell substrate). After coating development is completed, supporting manufacturers can proceed with the production and processing of end products according to the design requirements of automotive manufacturers.
In various auto parts sales markets and online platforms, we often see extremely low-priced original equipment manufacturer (OEM) exhaust header products, which misleads many car owners into thinking that “catalytic converters are very cheap.” Due to the huge demand in the domestic automotive aftermarket, many irresponsible exhaust manufacturers, to make their products more price-competitive than OEM parts, often purchase catalytic converters that do not meet emission standards or are even counterfeit. They then assemble these with their products for sale. The current modification market faces similar issues. In the modification market, both practitioners and most car owners lack basic knowledge about catalytic converters and assume that aftermarket catalytic converters should have worse exhaust filtration capabilities than OEM ones! This misconception largely contributes to the prevalence of inferior catalytic converters in the market! In fact, a truly emission-compliant high-flow aftermarket catalytic converter’s exhaust filtration capability is definitely not worse than a high-density OEM catalytic converter! In real-world usage, many customers who choose emission-compliant high-flow aftermarket exhaust headers pass their vehicle annual inspections smoothly, which is strong evidence.
Common Issues with Aftermarket Exhaust Catalytic Converters:
Mismatch between vehicle displacement and catalytic converter volume
There is a direct correlation between engine displacement and catalytic converter volume—larger displacements require larger catalytic converters. This principle is simple, much like water purifiers we use daily: the more water that needs purifying per unit time, the larger the purifier required.
Poor coating leading to short catalytic converter lifespan
For such catalytic converters, under long-term exposure to engine exhaust, the coating wears off quickly, causing the catalytic converter to fail. As shown in the image: both catalytic converters below have 200-cell substrates, but the left product has substandard coating, while the right one uses a specialized coating process for 200-cell metal substrates. Under the same tapping force, the left substrate shows significant coating, while the right shows no signs of.
The catalyst used contains no precious metals, only rare earth powders, or it is an old version that doesn’t meet current emission standards, falsely labeled as Euro 5.
Mismatch between external and actual dimensions of the catalytic converter
The catalytic converter may look large from the outside, but upon disassembly, its size is significantly reduced. Some exaggerated products have catalytic converters only one-third the size of their external appearance.
How to Choose an Aftermarket Header with a Catalytic Converter:
Answer: As ordinary consumers, we cannot test the composition of a catalytic converter, but we can make a preliminary judgment based on its volume. Only when the basic volume is guaranteed can we further discuss the quality of the catalytic converter. If the volume isn’t even ensured, other factors are irrelevant.
Cross-sectional area of the catalytic converter
[Image]
The two catalytic converters in the image above both have 200-cell densities, but clearly, the right one is thicker than the left. The cross-sectional area directly affects exhaust flow smoothness—a larger area allows smoother passage, reducing heat accumulation and improving backpressure control. For a 2.0L engine, the standard catalytic converter diameter should be 120MM.
[Image]
Overall volume of the catalytic converter
The two catalytic converters in the image above both have 200-cell densities, but their volumes differ significantly. The thoroughness of exhaust purification is directly related to the catalytic converter’s volume. For a 2.0L displacement vehicle, the standard catalytic converter should have a diameter of no less than 120MM and a length of no less than 130MM.
Summary: For an exhaust header with a catalytic converter, the volume of the catalytic converter is the most basic criterion. When choosing an exhaust header, don’t focus solely on welding craftsmanship or appearance—what you can see with the naked eye doesn’t add much value to the header (as shown below, can you use “beauty” to justify its price of over ten thousand?). In the current modification market and auto aftermarket, an exhaust header is a component that you might not get a quality product even if you’re willing to pay a high price. The main reason is that this product involves metal processing, chemical industry, and vehicle modification, spanning too many industries. Many manufacturers themselves don’t know what grade of catalytic converter they are using. So, when purchasing, it is advisable to ask about the source and brand of the catalytic converter, which can provide some reference for your choice.
